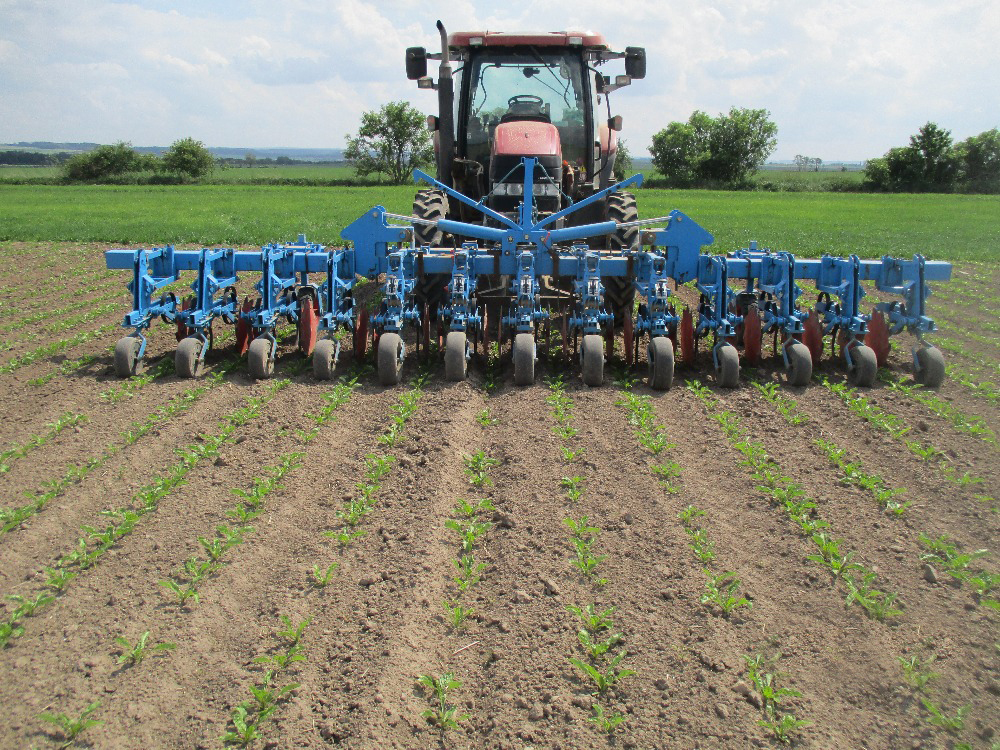

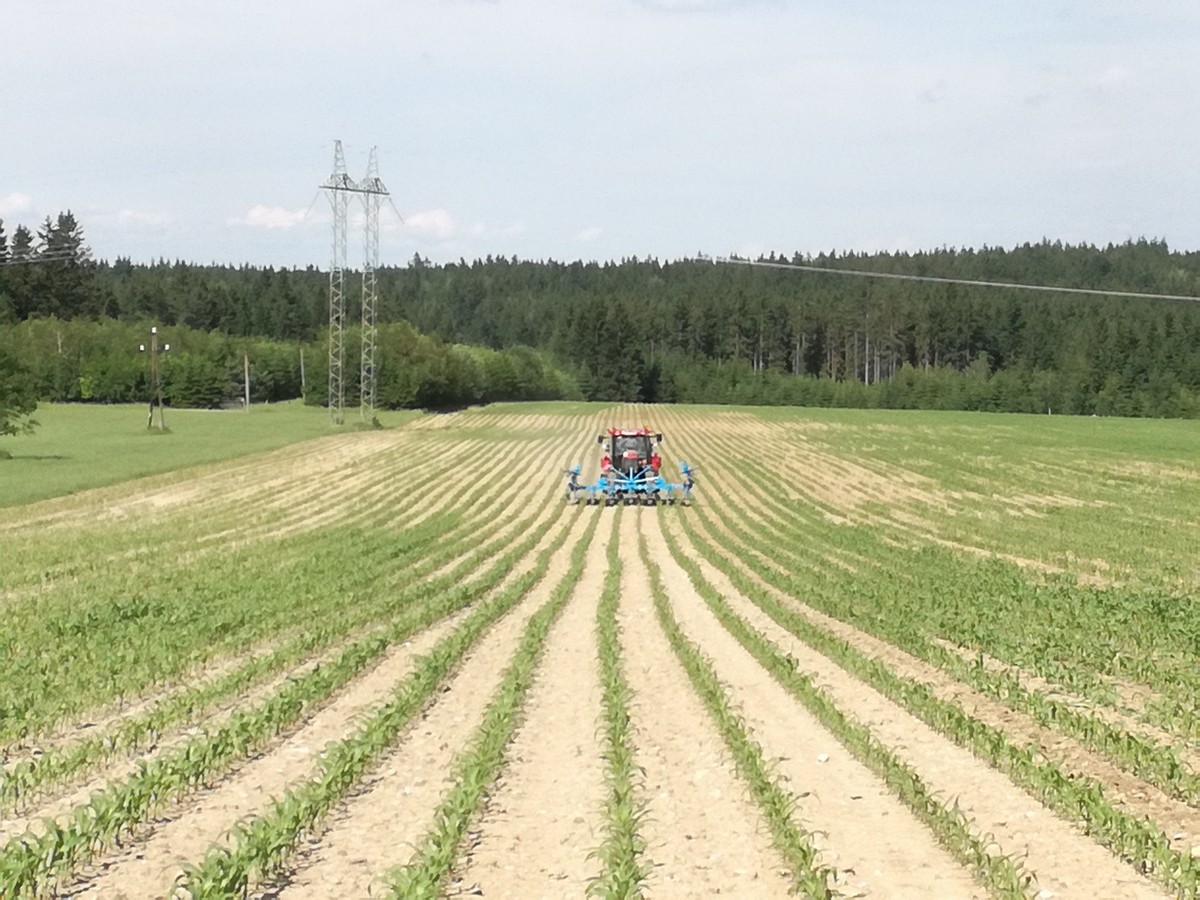

Front mounted corn and sunflower cultivator MONOSEM SCD 8 rows hydraulically tilting

  • hydraulically hinged frame with a width of 6.70 m, hung on the tractor's front hydraulics pins
  •  trucks pushed in front of the frame to reduce the distance from the tractor - better responsiveness
  • depth wheels in front of trolleys and frame
  • 2 support wheels 5.00x8
  • 2 guide discs
  • SCD cultivation unit for 75 or 80 cm working width, individual depth setting,
  • 5 flexible S pens with 150 mm blade,
          protective discs

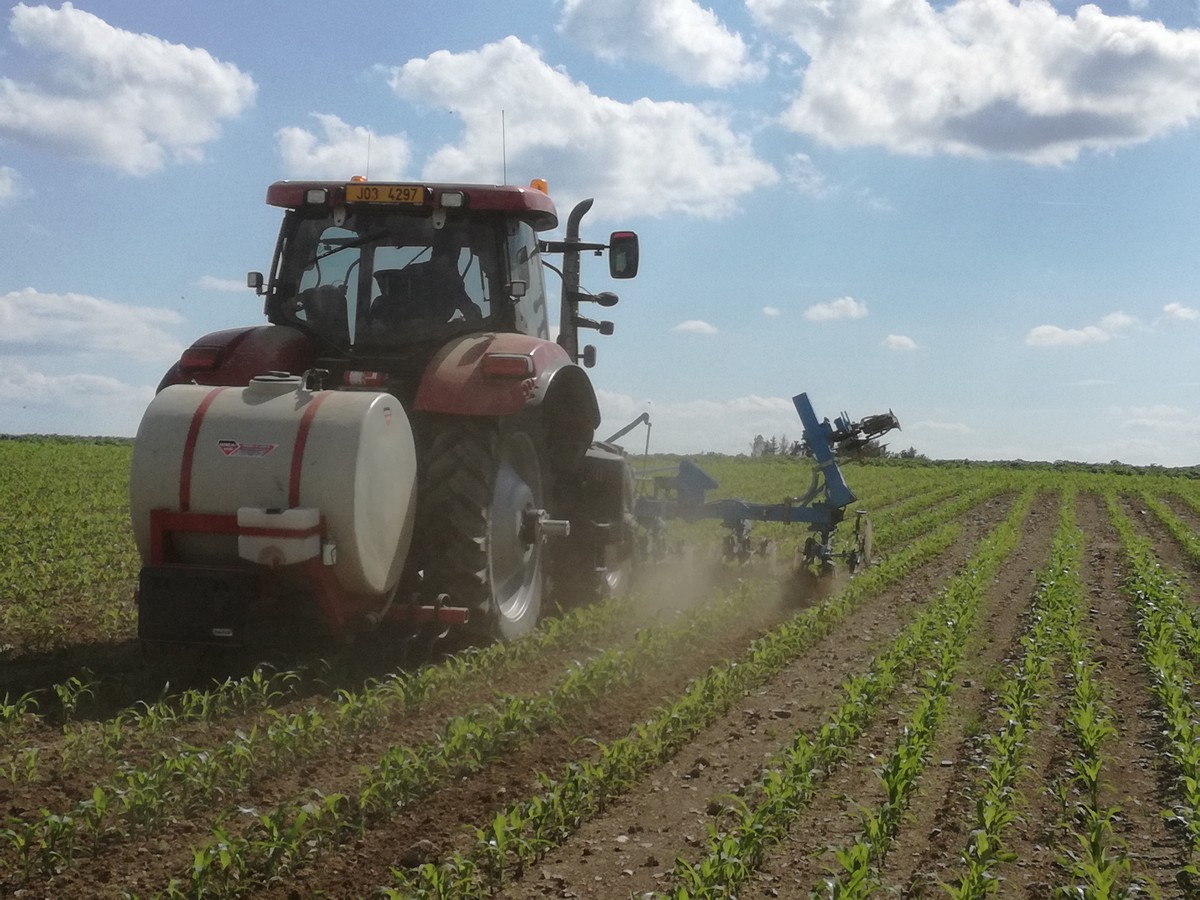

HERBI - MICRO electronic liquid fertilizer for 8-row cultivator MONOSEM SCD

  • 2 outlets per line
  • 8-line distribution ramp, calibrated flow restrictors, stainless steel dosing tubes
  • 1 piston-diaphragm pump 50 L / mn for 8 rows
  • 80 to 150 liters
  • tank 1200 l
